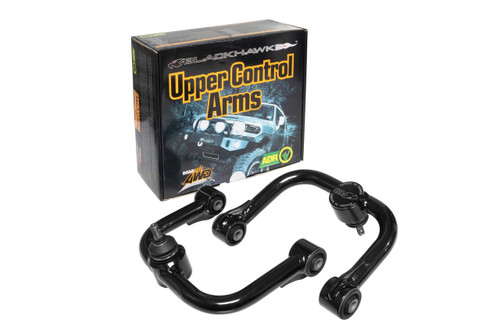

Blackhawk Upper Control Arms suitable for Nissan Navara D40 D23 & R51 Pathfinder
Blackhawk Upper Control Arms suitable for Lifted D40 D23 Navara & R51 Pathfinder
This is a new quality Blackhawk by Roadsafe Castor Corrected Upper Control Arm Kit (Modified Version 2)
Suitable for:
- Nissan Navara D40, and D23 (NP300) built from 09/2005 onwards.
- Nissan Pathfinder R51 4WD built from 07/2005 to 2012.
These control arms are suitable for vehicles with 30mm to 70mm of lift combined with a maximum 50mm extended strut
Roadsafe "BLACKHAWK" Upper Arms are designed with 3 degrees fixed caster and optimally suited to lifts of 30-70mm
They are finished in dual layer coating including black e-coat and Gloss Black Powder Coat for maximum durability, rust prevention and discreet installation
IMPORTANT NOTE:
D40s can have either 1 or 2 camber adjusting bolts on the lower front control arms
THIS UPPER CONTROL ARM WILL NOT FIT VEHICLES WITH ONE ADJUSTER BOLT
Vehicles with one adjuster bolt have a fixed bolt on the front fork of the lower control arm and an adjustable one on the rear
You can see if you have a fixed bolt on the front by looking under the vehicle from the front
Where the front of the lower control arm is bolted to the chassis it will look like a normal bolt WITHOUT the concentric washer found in the same position on the rear
Both these bolts allow the control arm to pivot on the chassis for up and down suspension travel
See image gallery for photo of adjustable bolt found on the rear (has yellow paint mark on concentric washer)
Please contact us if you are unsure which you have
ITEM SPECIFICS
| Brand: | Roadsafe 4WD |
| Manufacturer Part Number: | UCA4981NV2 |
| Our Part Number: | NGUCA4981NV2 |
| Condition: | New |
ADDITIONAL INFORMATION
- All Four x 4 Spares are an independent supplier of aftermarket, original equipment, and genuine parts. We are in no way related to genuine or original part manufacturers, distributors, or dealers. The warranty of any OEM genuine part is solely provided by All Four x 4 Spares
- This is an aftermarket product. Equivalent original equipment part number(s) are provided for reference purposes only.
All Four x 4 Spares will always undertake to provide adequate packaging to prevent damage to products during shipping. Our responsibility for any damage to freight ends when order has left our premises. We will consider replacement of damaged product however judgement will be at our discretion. If damage has occurred during shipping it would be advised to notify us and relevant courier.
- All exchanges / credits / refunds must be returned in saleable condition with packaging, accompanied by the original invoice for proof of purchase.
- All USED mechanical parts sold carry a 3 Month parts only warranty unless otherwise specified.
- All NEW mechanical parts sold carry a 12 Month / Unlimited kilometre parts only warranty unless otherwise specified.
- All electrical parts or components sold carry a 30 Day parts only warranty unless otherwise specified.
- All Four x 4 Warranty does not cover - Labour expenses, freight or towing costs, oil leaks, broken gears, consequential damage, loss of income or any other loss or expense.
- All Four x 4 will not be liable for any repairs or work carried out, without prior approval from All Four x 4.
- Warranty is void if parts have been tampered with, modified or dismantled.
- Goods cannot be returned if they have been specially ordered or vehicle cut section.
- Goods not required must be returned within 14 Days of invoice date at purchaser’s expense. Goods will be accepted only at the Management’s discretion. If accepted for return, such goods will be subject to a 15% handling charge.
- Good will not be accepted for return if they have been fitted, unless proven faulty.
- Warranty is void for components used in performance / modified vehicles or parts / competition / off road / race applications.
- All fitment information is for vehicles released in Australia, unless specified otherwise.
