Tough Dog Upper Control Arms suitable for Hilux KUN GGN 2005-On - TDCA-002
Tough Dog Upper Control Arms suitable for Toyota Hilux KUN26 GGN25 GGN125 GUN126 GUN136 - TDCA-002
Suitable for
Toyota Hilux KUN26 fitted with 3.0 Litre 1KD-FTV Turbo Diesel Engine, built from 2/2005 - 4/2015
Toyota Hilux GGN25 fitted with 4.0 Litre 1GR-FE Engine, built from 2/2005 - 4/2015
Toyota Hilux GGN125 4.0 Litre 1GR-FE Engine, built from 5/2015-5/2018
Toyota Hilux GUN126 2.8 Litre 2GD-FTV Turbo Diesel Engine, built from 5/2015-Onwards
Toyota Hilux GUN136 2.8 Litre 2GD-FTV Turbo Diesel Engine, built from 5/2015-Onwards

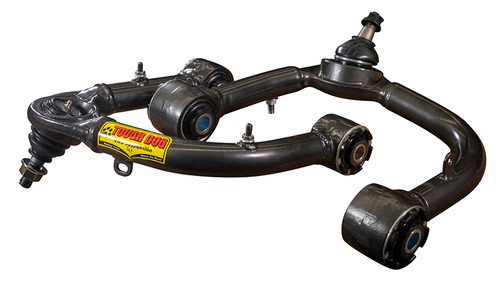

Tough Dog Upper Control arms are built tough. The end housings are forged from 1020 grade steel, as is the ball joint housing, which has been specifically crafted with a slimline design to maximise clearance. The bushings are heavy-duty, high flex style design requiring no lubrication, for maximum life span in rough terrain. The ball joint is constructed of high strength Chromoly steel. For ease of servicing, all Tough Dog UCAs are designed to accept original equipment ball joint parts as spares should you ever need to.
Tough Dog Upper Control arms can help get the maximum performance and lifespan from your suspension and steering components.
When an IFS vehicle is fitted with a suspension lift, the original caster and camber specifications are pushed outside the acceptable limit. The vehicle loses caster which makes the steering vague, and positive camber is introduced, which contributes to uneven and accelerated tyre wear.
Features
-High Strength Chromoly Ball Joints
-Heavy-Duty, High Flex Bushings
-1020 Grade forged housings
-Up to +3.5 degrees positive Caster (lift height dependant)
-Tube design gives increased clearance
-Positions for factory mounting of brake ad ABS lines
-Improves steering feel and response
ITEM SPECIFICS
| Brand: | Tough Dog |
| Manufacturer Part Number: | TDCA-002 |
| Our Part Number: | NGTDCA002 |
| Condition: | New |
